Technical Specifications

Type

MC/MM Preamplifier
Main Phono Circuit on Separate Gold Plated PCB

Power Supply

Linear, Int. Switchable
Transformer on Separate Gold Plated PCB

Gain Settings

40.2dB to 62.8dB
In 12 Steps – See Manual
High Gain version – Add 6.4dB to all settings

Input Impedance Settings Resistance

47k for MM

Capacitance

100pF & 470pF for MM
100pF to 1.02uF for MC – In 9 Steps

Frequency Response

20Hz – 20kHz
+/- 0.2dB

Noise

< -78dB – AWD

THD-N

0.03%

Finish

Front Panel Options

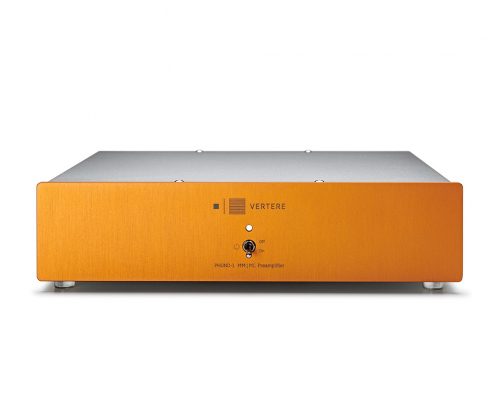

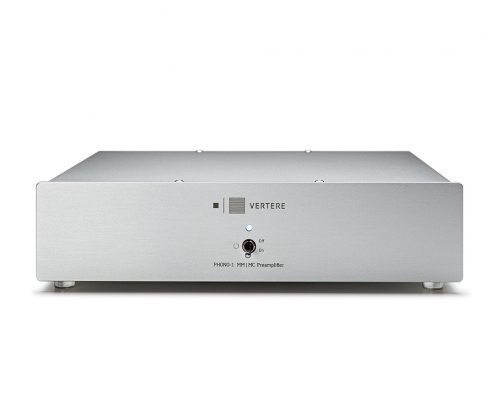

Vertere Orange, Silver, Black

Dimensions

210 x 235 x 55mm W x D x H (Incl. Switches & Feet)

Weight

2.00Kg
